Soft Top
107 CHASSIS SOFT TOP FRAME RUBBER KIT
ORIGINAL GERMAN CANVAS APPLIES TO THE 350SL, 380SL, 450SL, 500SL & 560SL (107 Chassis)FROM 1972 TO 1989.
SONNENDECK CANVAS APPLIES TO THE 350SL, 380SL, 450SL, 500SL & 560SL (107 Chassis)FROM 1972 TO 1989.Article code: v.nr.773114
Tan German to cover the Soft Top FrameArticle code: v.nr.440053B

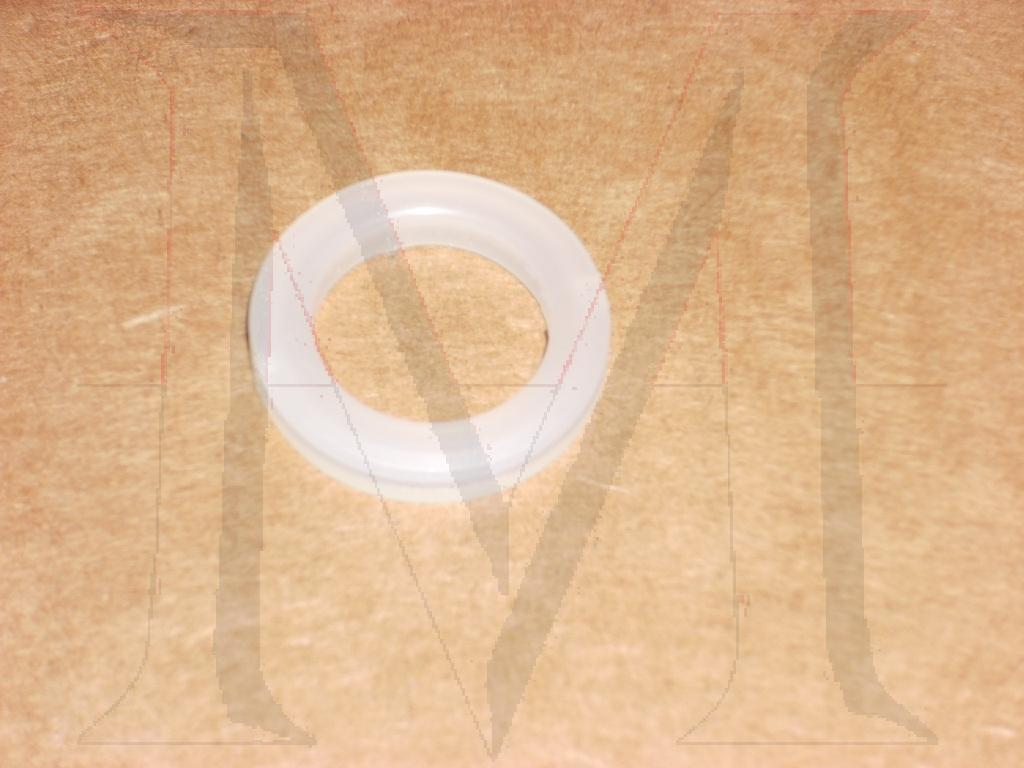

THIS IS THE WASHER THAT FITS ALL 107 BETWEEN THE CRANK ARM AND THE FOLDING TOP LEVER
LEFT SIDE TOP LOCK FOR BOTH SOFT & HARD TOPS FOR 450SL FROM CHASSIS # 031358 TO 560SL END. CAN BE USED ON EARLIER 450SLs FROM CHASSIS # 004182 ON BUT MUST BE REPLACED ALONG WITH THE RIGHT SIDE LOCK # 77-3118R.
RIGHT SIDE TOP LOCK FOR BOTH SOFT & HARD TOPS FOR 450SL FROM CHASSIS # 031358 TO 560SL END. CAN BE USED ON EARLIER 450SLs FROM CHASSIS # 004182 ON BUT MUST BE REPLACED ALONG WITH THE LEFT SIDE LOCK # 77-3118L.
MOUNTED ON FRONT OF BOTH THE HARD AND SOFT TOPS TO SEAL ROOF TO TOP OF W/S FRAME. 1 PER TOP.
CHROME METAL RAIL ON BOTH HARD & SOFT TOP TO RETAIN FRONT TOP RUBBER SEAL # 77-3019.
Works on 107 chassis cars An Additional Charge of $40.00 will be added for Bulk shipping Can be used in counjunction with your electric drill for electric functionality The Easy Hoists hardtop hoist system consists of a unique, patented cradle which cleverly supports and counter-balances the hardtop and allows it to be safely stored in the raised position near the ceiling of your garage, a manual wormgear winch which cannot slip, aircraft grade wire rope, and a set of high quality pulleys and fixings. Anyone who has tried to remove and fit a hardtop manually will know what a struggle it can be. The Easy Hoists hardtop hoist system makes the job of fitting and removing your hardtop a simple operation which is usually possible with just one person. There is no physical strength required on the part of the operator since the winch does all the work. The hardtop hoist is available for many OEM hard tops The hardtop hoist cradle is custom fitted for each model of car The hardtop hoist supports your hard top at strategic locations to prevent warping or bending of the hard top No complicated procedures for attaching or detaching the hardtop hoist apparatus Easy operation equals greater safety Does not touch rubber seals Protecting the rubber seals while stored prevents wind noise, water seepage, etc. after the hard top is refitted to the car body Safely remove, store and replace your hard top *** PLEASE NOTE *** All hoists are currently being finished in bare aluminium rather than finished in black. The pictures are for illustration only rather than the actual item. All hoists sold here are brand new, boxed items. NOT RESPONSIBLE FOR DAMAGES OR EXPENSES INCURRED DUE TO IMPROPER INSTALLATION AND OR USAGE!!!

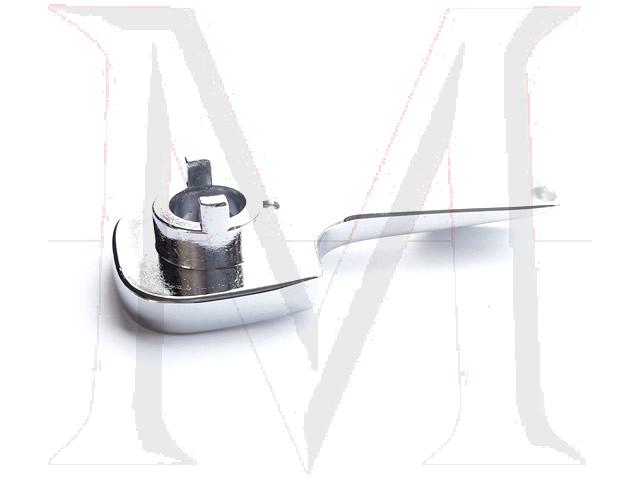

THIS IS THE LEVER/HANDLE THAT WILL UNLOCK THE HARD TOP FROM THE CHASSIS IT IS LOCATED ON THE DRIVER SIDE (LEFT) IN THE BACK.
TENSIONER CABLE MOUNTED IN REAR CENTER OF SOFT TOP BETWEEN REAR BOW AND BOW DIRECTLY ABOVE THE REAR SOFT TOP WINDOW.
LOCK ASSY. MOUNTED IN REAR CENTER OF THE SOFT TOP WELL WHICH SECURES REAR CENTER PIN ON BACK OF SOFT-TOP FRAME OR HARDTOP TO CAR BODY.
SIDE TENSIONER CABLE PAD (right) ALL SLS PROTECTIVE PAD FOR CABLE # 77-0059
SIDE TENSIONER CABLE PAD (left) ALL SLS PROTECTIVE PAD FOR CABLE # 77-0059
MOUNTED ON REAR BOW OF SOFT TOP FRAME, SEALS REAR OF SOFT TOP TO BODY.
RUBBER BUFFER WITH THREADED POST FOR INSTALLATION TO BASE OF VERTICAL TOP FRAME SUPPORT AT BACK OF DOOR GLASS WHERE FRAME ASSY. SWIVALS TO COLLAPSE INTO THE SOFT TOP WELL. 2 PER CAR. SOLD EACH
TENSION SPRING FOR SOFT TOP FRAME ASSY. HINGE. SAME LEFT OR RIGHT 2 PER CAR.

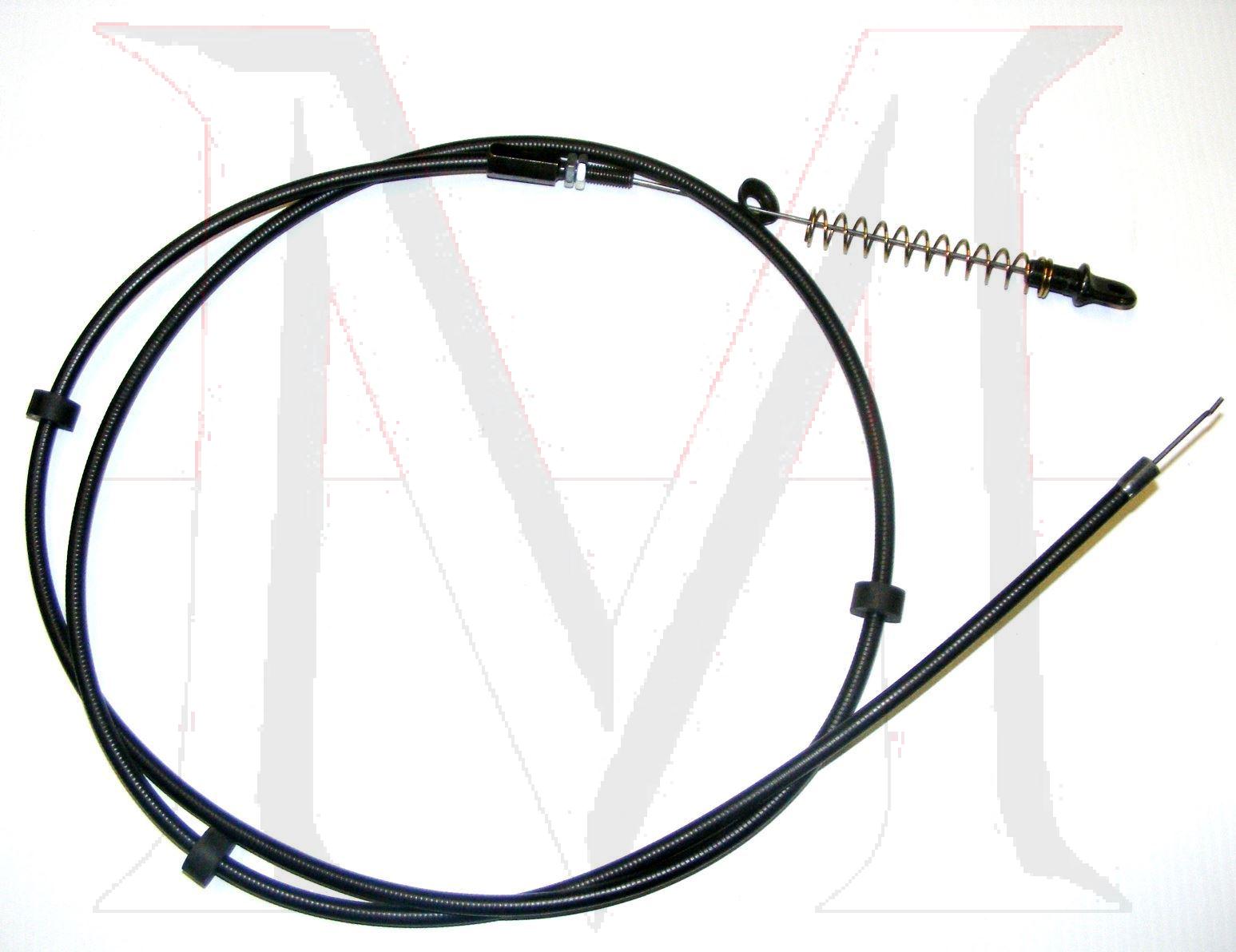

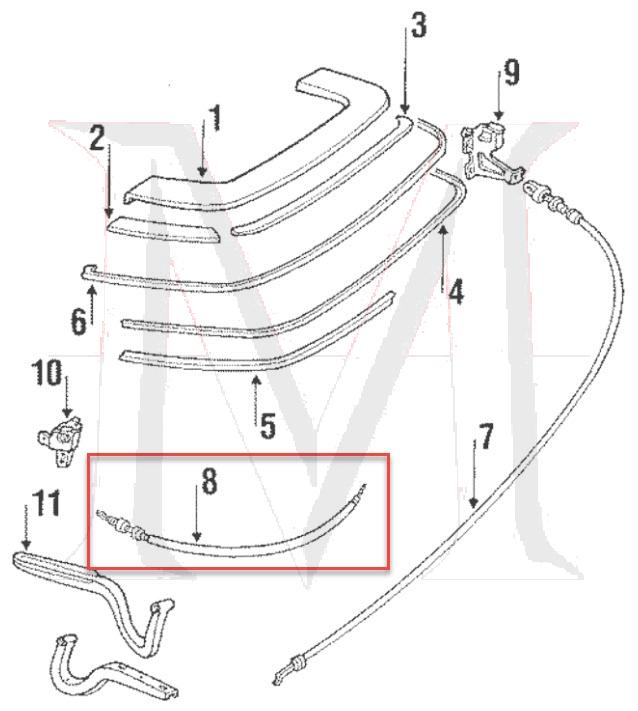

RELEASE CABLE RUNNING FROM LOCK RELEASE TURNBUCKLE TO PASSENGER SIDE TOPCASE LOCK, SPRING LOADED AT PASSENGER SIDE LOCK. COMPLETE WITH SLEEVE.
