NOT AVAILABLE AT THIS TIME MOUNTED ON SIDE OF THROTTLE BODY. GASKET IS # 07-2061, CAN BE MADE OF BULK GASKET PAPER.Article code: v.nr.0005453304
METAL CAN STYLE SCREW ON FILTER LOCATED AT INJECTION PUMP THERMOSTAT HOUSING. EARLY FILTER USED WITH ORIGINAL PUMP ON 230SLs AND UP TO 250SL ENGINE # 10-000196 & 12-000136.
BRASS BUSHING ON EITHER SIDE OF THROTTLE CONTROL SHAFT. 2 PER CAR.Article code: v.nr.1270720185
CERAMIC MOUNTING FLANGE FOR INJECTION PUMP. WILL ALSO NEED 2 OF GASKET # 07-2030.Article code: v.nr.1990770280
TOP SWITCH PORTION THAT SCREWS ON TO KICKDOWN ASSY. BEHIND ACCELERATOR PEDAL.Article code: v.nr.0005451706

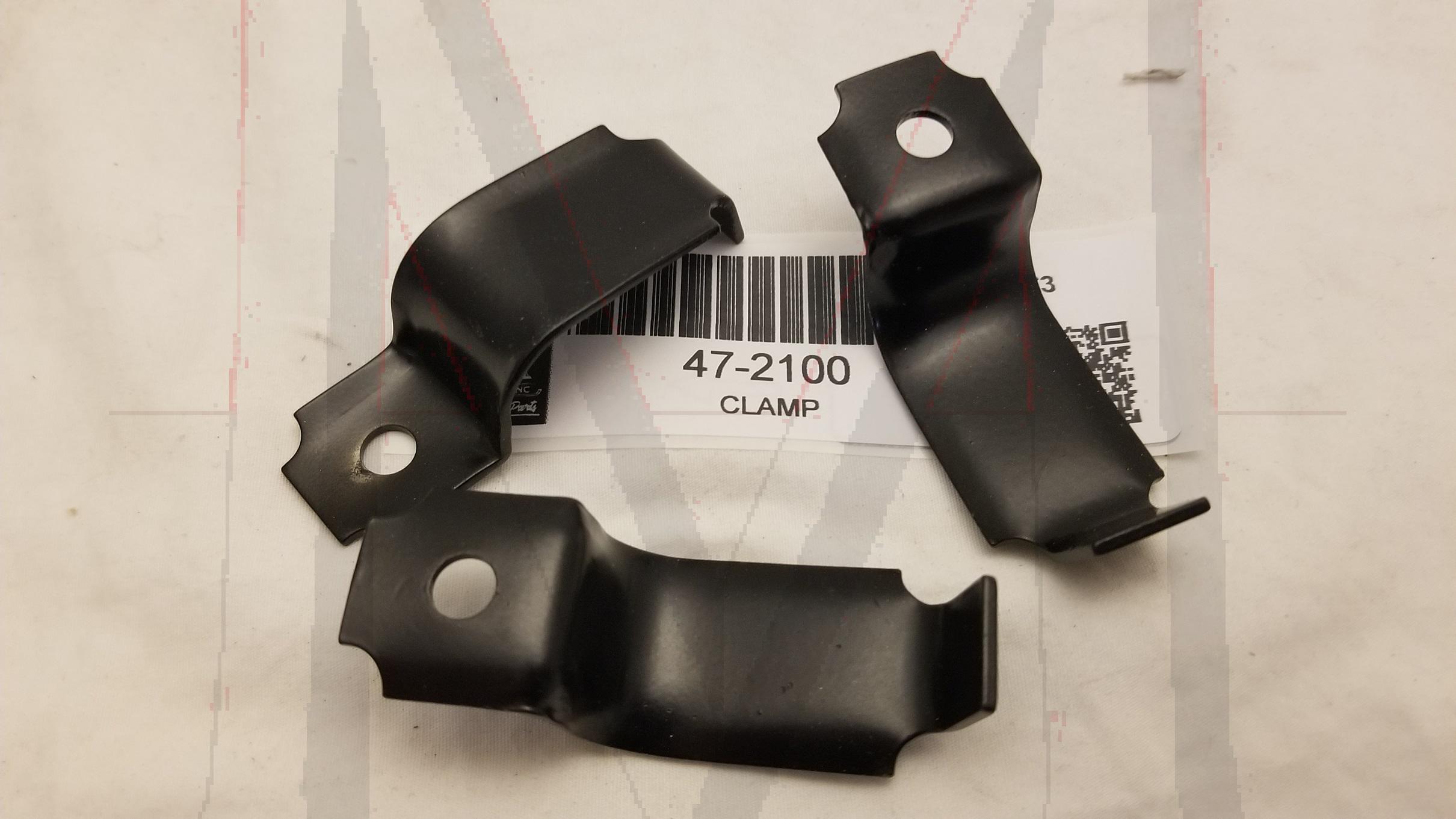

USED TO RETAIN FUEL AND BRAKE LINES. 10 PER CAR.Article code: v.nr.1109950022

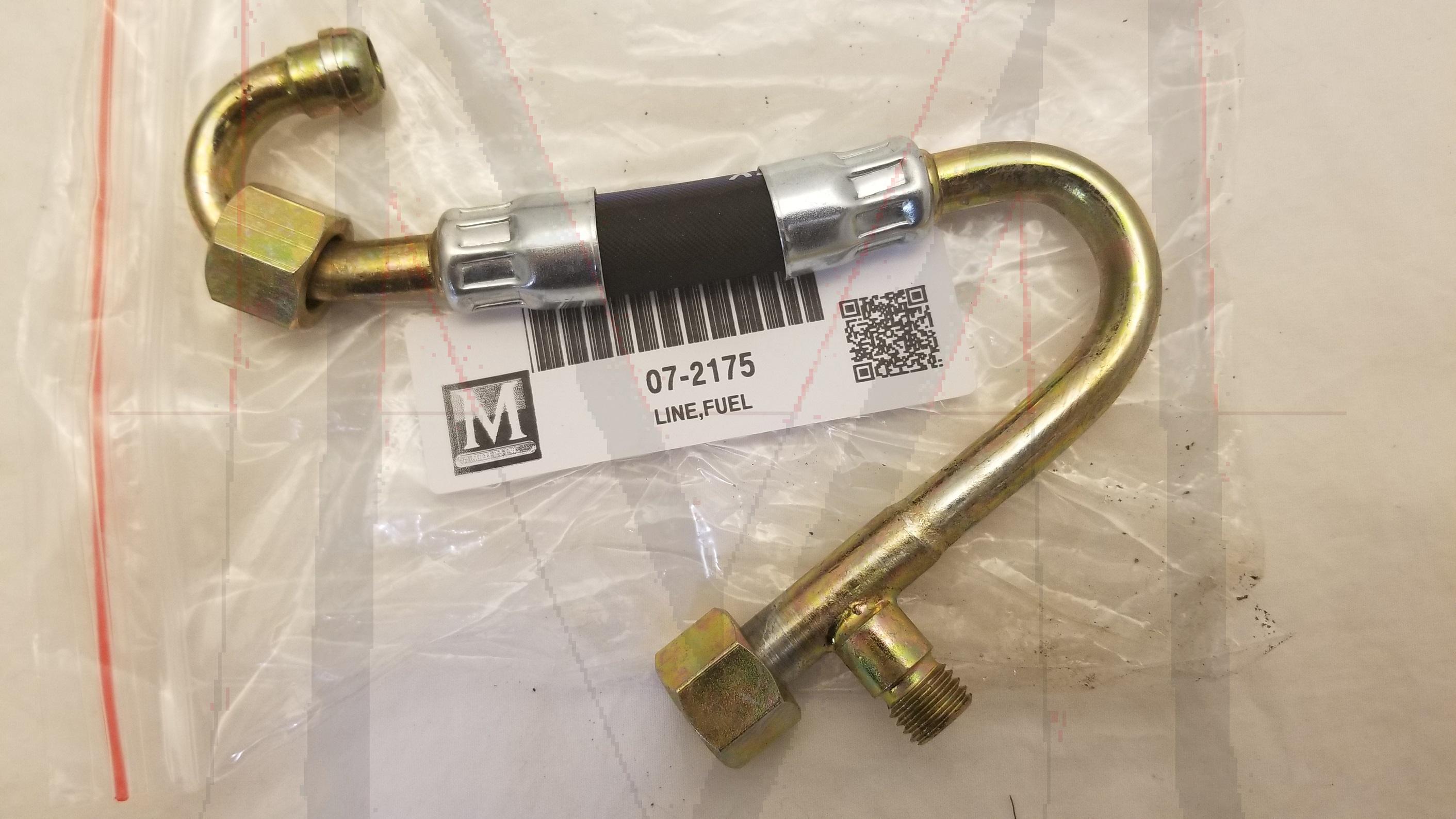

FROM FILTER HOUSING TO PUMP. 2 LONGER METAL ENDS WITH SHORT RUBBER SECTION. NOT FOR 230SLs.
FOR FUEL AND BRAKE LINES. 12 PER CAR.Article code: v.nr.1114760384

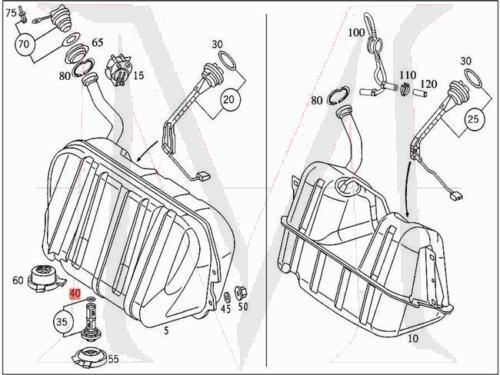

SEAL FOR FUEL TANK DRAIN PLUG & SCREEN.Article code: v.nr.0229970648
NOT AVAILABLE AT THIS TIME MOUNTED ON TOP OF INTAKE TO DAMPEN THROTTLE CLOSING UPON DECELERATION. PREVENTS STALL & CHOKE. EARLY CARS (230SLs) MAY REQUIRE ADDITIONAL MOUNTING BRACKET/S.
PART NOT AVAILABLE AT THIS TIME. PART OF THR HOT START MODIFICATION. ALLOWS FOR A 1 SECOND FUEL DISCHARGE FROM THE COLD START VALVE IN WARM ENGINES TO IMPROVE HOT START. IF NOT PREVIOSLY INSTALLED, WILL ALSO NEED HARNESS # 54-2132.
WIRE HARNESS NEEDED TO INSTALL TIME LAG RELAY # 54-2131 IF NOT PREVIOUSLY INSTALLED.Article code: v.nr.1085401009
